MQTT Add-on for Modbus Monitor Advanced

Real-time IoT data publishing from Android to any MQTT broker

MQTT Integration

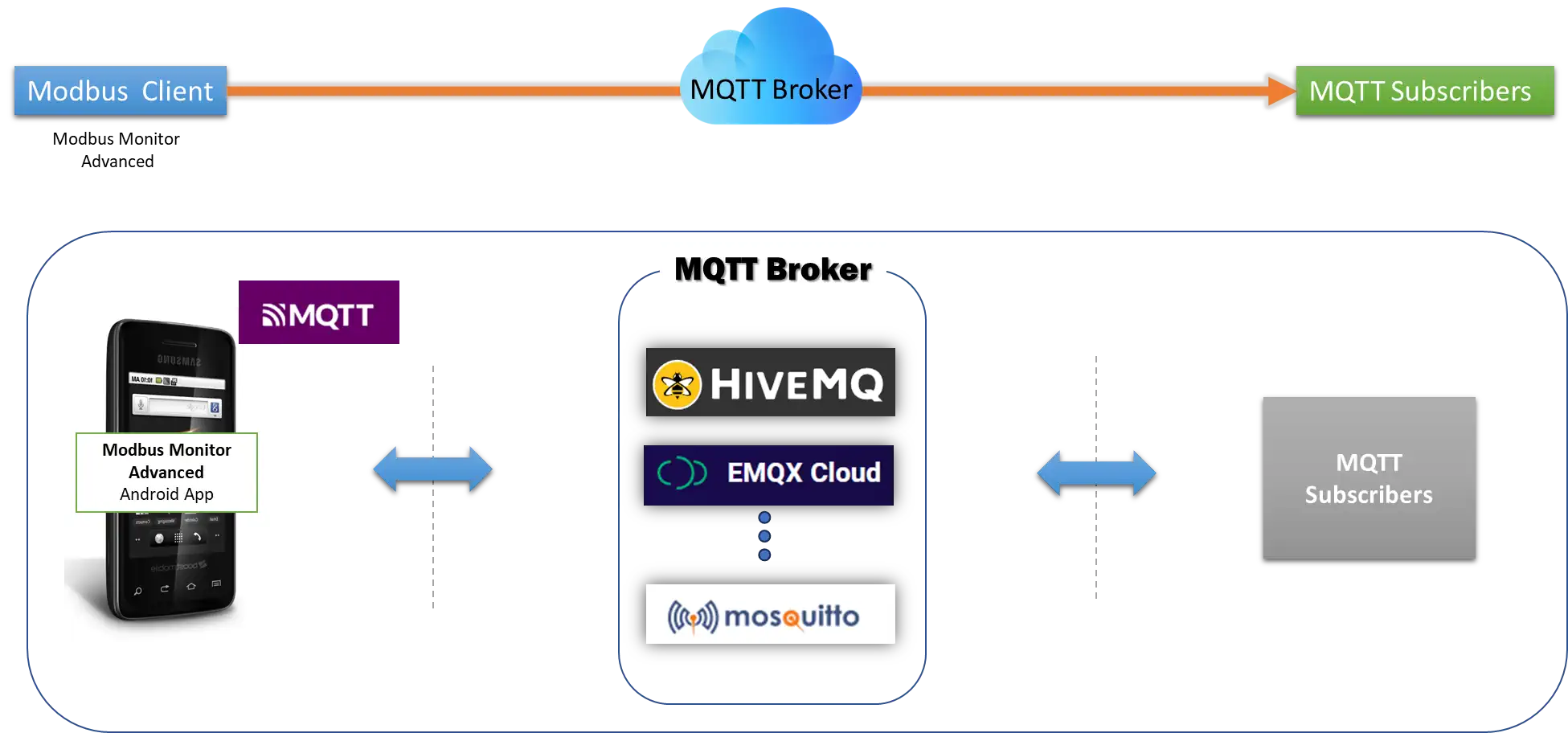

Overview

The MQTT Add-on extends Modbus Monitor Advanced with professional IoT capabilities, enabling real-time data publishing to cloud platforms, enterprise message brokers, and custom dashboards.

How It Works:

Modbus Monitor Advanced can read data from any local source (Modbus TCP servers, serial devices, Bluetooth adapters, sensors, or simulated data) through three communication channels—and automatically publish everything to your cloud MQTT broker. No databases, servers, or coding required. Perfect for remote monitoring, edge computing, and IoT dashboards.

Data Flow Example:

Local Modbus Server (TCP/IP, USB Serial, or Bluetooth)
        ↓
Modbus Monitor Advanced (reads data every polling cycle)
        ↓
MQTT Add-on (transforms data to JSON)
        ↓
Cloud MQTT Broker (HiveMQ, AWS IoT, Azure, Mosquitto, etc.)
        ↓
Dashboards, Analytics, Mobile Apps, Alerts

Quick Links

Get Started (5 min) | Step-by-Step Guide | Expert Reference

YouTube Walkthrough

Watch the complete MQTT setup and live publishing demo: MQTT Publisher Video

Quick Start Setup (5 Minutes)

Perfect for first-time users—get your data publishing to the cloud in 5 minutes using HiveMQ free broker.

What You Need

  • ✅ Android device with Modbus Monitor Advanced + MQTT add-on purchased
  • ✅ A Modbus server to read from (TCP/IP, USB Serial, or Bluetooth—see examples below)
  • ✅ Free HiveMQ broker account (or any MQTT broker: local Mosquitto, AWS IoT, Azure, etc.)

The Simplest Setup (TCP/IP Example)

Step 1: Create a Monitor Point (30 seconds)

  1. Open Modbus Monitor Advanced → Tap + (add button)
  2. Tap Change and configure:
  3. Channel: TCP/IP
  4. IP Address: 192.168.68.62 (your Modbus server)
  5. Port: 502
  6. Address: 400001
  7. Data Type: INT16
  8. Tap OK

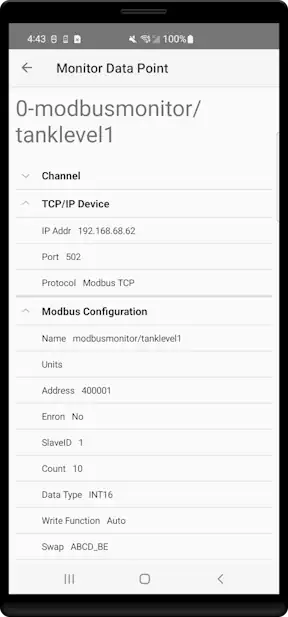

Monitor Point MQTT Topic

💡 Need help? See Advanced Guide → Creating Monitor Points for detailed explanations of each field.

Step 2: Enable MQTT (60 seconds)

  1. Tap Hamburger Menu → Settings → MQTT
  2. Toggle Enable MQTT ON
  3. Fill in:
  4. Broker Host: broker.hivemq.com
  5. Port: 1883
  6. Client ID: myandroid01 (any unique name)
  7. Topic: modbusmonitor/tanklevel1 (any path you like)
  8. Tap Save

Step 3: Start Publishing (10 seconds)

  1. Return to main screen
  2. Tap the Link icon to start polling
  3. Done! Data is now publishing to HiveMQ

Verify It Works:

  1. Go to HiveMQ Web Client
  2. Click Connect
  3. Subscribe to modbusmonitor/#
  4. Watch your data appear in real-time! 🎉

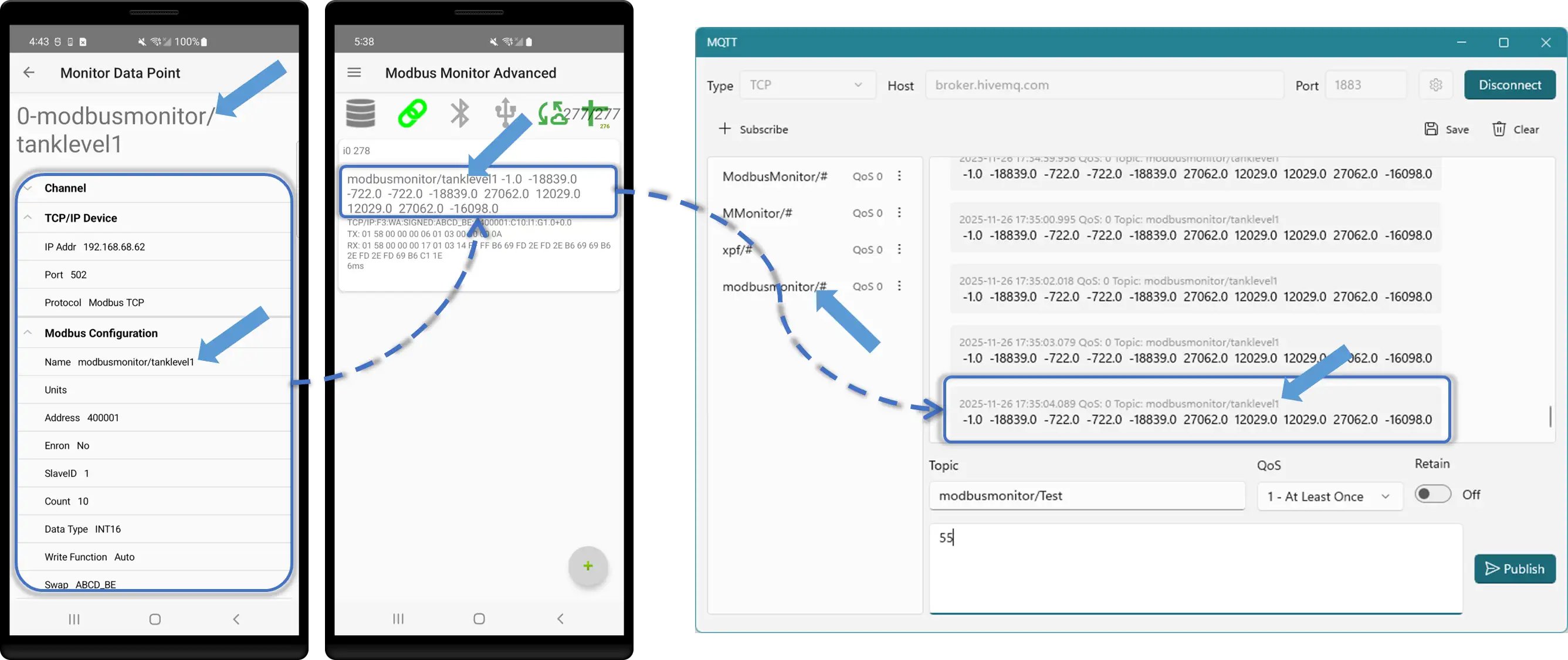

Diagram reference:

  • (Left) Monitoring point polls the local Modbus server (configuration).
  • (Middle) App reads data from the TCP device.
  • (Right) MQTT tool subscribes to the topic and receives values broadcast by the remote broker.
  • The arrow shows topics published by the Modbus Monitor Android configuration (name: modbusmonitor/tanklevel1). The value is published after polling (modbusmonitor/tanklevel1) and is subscribed to by the remote monitoring tool (modbusmonitor/#).
MQTT Publishing Flow
MQTT Publishing Flow: Modbus → Android app → MQTT broker → Remote subscribers

MQTT in Action: Step-by-Step Workflow

Detailed walkthrough with all settings explained—follow this if Quick Start feels too fast.

Setup Your Test Environment

What You'll Need:

  1. Android device running Modbus Monitor Advanced with MQTT add-on purchased
  2. Remote Modbus Server (can be Modbus Monitor XPF on Windows, or any Modbus TCP server)
  3. MQTT Broker (we'll use public HiveMQ: broker.hivemq.com)
  4. MQTT Client (MQTT Explorer to subscribe and verify publishing)

System Overview:

Modbus Server (Windows XPF)
        ↓ {TCP/IP}
Android Device (Modbus Monitor Advanced)
        ↓ {WiFi/Ethernet → Internet}
HiveMQ Public Broker
        ↓ {MQTT}
MQTT Explorer (or other subscribers)

Step 1: Connect to Modbus Server

  1. Open Modbus Monitor Advanced → Hamburger Menu → + to create a Monitor Point
  2. Tap Change to configure:
    • Channel: TCP/IP (WiFi)
    • Protocol: Modbus TCP
    • Device IP: Enter your Windows/Modbus server IP (e.g., 192.168.1.100)
    • Port: Default Modbus TCP port (e.g., 502 or 8888 if custom)
    • Slave ID: 1 (or appropriate value for your server)
    • Address: 400001 (Holding Register example)
    • Count: 2 (read 2 registers)
    • Data Type: FLOAT32
    • Name: temperature (use naming similar to MQTT topics)
  3. Tap OK to save the monitor point

📖 For detailed field explanations, see Advanced Guide → Monitor Point Configuration

Step 2: Open MQTT Console

  1. Tap Hamburger Menu → Cloud → MQTT (or look for MQTT button in menu)
  2. MQTT Console opens showing connection status

Step 3: Connect to HiveMQ Broker (Manual Test)

  1. In MQTT Console, fill in broker details:
  2. Broker Host: broker.hivemq.com
  3. Port: 1883 (or 8883 for TLS/SSL secure connection)
  4. Client ID: android-modbus-monitor (or any unique ID)
  5. Username: Leave blank (HiveMQ public broker requires no auth)
  6. Password: Leave blank

  7. Use TLS/SSL: Toggle OFF for port 1883, toggle ON for port 8883

  8. Tap Connect button

  9. Header lights up GREEN → Connection successful!
  10. Any connection messages display at bottom of console

Secure Port Options:

Protocol Port Use Case TLS Toggle
TCP (Unencrypted) 1883 Testing, local networks OFF
TLS/SSL (Encrypted) 8883 Production, cloud brokers ON
WebSocket 8000 Browser/web apps OFF
WebSocket Secure 8001 Secure web apps ON

Example Brokers with Secure Ports:

  • HiveMQ: tcp://broker.hivemq.com:1883 or ssl://broker.hivemq.com:8883
  • AWS IoT: ssl://<endpoint>.iot.region.amazonaws.com:8883
  • Azure IoT: ssl://your-hub.azure-devices.net:8883
  • Mosquitto: tcp://test.mosquitto.org:1883 or ssl://test.mosquitto.org:8883

Step 4: Manually Publish Test Data

  1. In MQTT Console, tap Publish button
  2. Configure publish settings:
    • Topic: modbusmonitor/temperature
    • Payload: 75.3 (sample temperature value)
  3. Tap Send
  4. Data is now published to the broker for remote subscribers

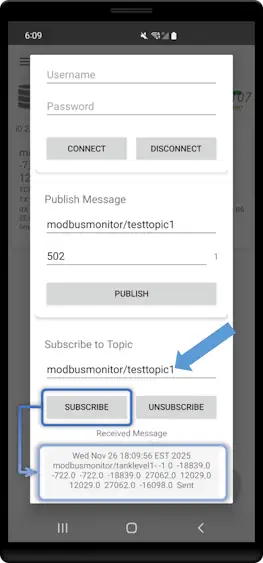

Verify directly inside the app—no external tools required:

  1. In the same MQTT Console where you published
  2. Find the Subscribe section (or Subscriptions tab)
  3. Enter the topic: modbusmonitor/temperature
  4. Tap Subscribe
  5. Watch the console—you'll see incoming messages in real-time:
    Subscribed to: modbusmonitor/temperature
Message: 75.3
  6. When finished, tap Unsubscribe to stop listening MQTT Subscribe Verify

Verify using an external MQTT tool on your computer:

  • Open MQTT Explorer or similar tool on your computer
  • Connect to broker.hivemq.com
  • Subscribe to modbusmonitor/# (wildcard to see all topics)
  • You should see: modbusmonitor/temperature = 75.3

Step 5: Configure Automatic Publishing

Now let's automate this so data publishes continuously:

  1. Go back to Monitor Points list
  2. Tap your monitor point (e.g., temperature) → Change
  3. Confirm TCP/IP, Modbus TCP, and data type settings are correct
  4. Tap OK to return to list

💡 Tip: If your values aren't updating correctly, review Advanced Guide → Troubleshooting Monitor Points

  1. Open Hamburger Menu → Settings → MQTT
  2. Configure MQTT settings:
  3. Enable MQTT: Toggle ON
  4. Broker Host: broker.hivemq.com
  5. Port: 1883
  6. Client ID: android-modbus-monitor
  7. Base Topic: modbus/monitor (auto-appends point name or /batch)
  8. Publish Mode: Choose:
    • Individual Topics: Each point publishes separately (e.g., .../temperature, .../pressure)
    • Batch JSON: All points in one message (e.g., .../batch)

  9. QoS: 0 (for testing) or 1 (for reliability)

  10. Tap Save to apply settings

Step 6: Start Real-Time Publishing

  1. Return to main screen with your Monitor Point
  2. Tap the Link icon to start Client Mode
  3. App begins polling the Modbus server every cycle
  4. Data updates are displayed in real-time

  5. MQTT automatically publishes after each complete polling cycle

  6. Watch in MQTT Explorer:

  7. You'll see modbusmonitor/tank1/temperature update in real-time
  8. Each time the polling cycle completes, a new value publishes
  9. Example sequence: 75.3 → 75.5 → 76.1 → (repeating)

Step 7: Stop Communication

  1. Tap the Link icon again to halt Client Mode
  2. Polling stops and MQTT publishing stops
  3. Last published values remain in broker (subscribers see last-known values)

Step 8: View Published Data Flow

What's Happening Behind the Scenes:

[Polling Cycle]
1. App connects to Modbus server
2. Requests holding register 400001 (2 registers)
3. Server responds with raw data
4. App converts to FLOAT32 → "75.3"
5. [MQTT Automatically Publishes]
6. Data sent to HiveMQ broker
7. Remote subscribers (MQTT Explorer) receive: "modbus/monitor/temperature = 75.3"
8. Repeat cycle every ~1000ms (configurable)

Data Sources: Three Communication Channels

Modbus Monitor Advanced can read data from any of three communication channels, and MQTT will seamlessly publish all data to your cloud broker without any additional configuration.

📖 For complete channel documentation, see Advanced Guide → Communication Channels

Channel 1: TCP/IP (WiFi/Ethernet)

Best For: Remote Modbus servers, industrial equipment on network, desktop applications

Setup:

  • Server IP: 192.168.1.100 (or public IP if remote)
  • Port: 502 (Modbus TCP standard) or custom port like 8888
  • Protocol: Modbus TCP, Modbus UDP
  • Perfect for: Factory equipment, SCADA systems, remote gateways

MQTT Publishing:

Data Flow: Remote Server (TCP/IP) → Android App → MQTT Broker → Dashboard
Example: Industrial PLC reading temperature → Android polling → HiveMQ cloud

Channel 2: USB-OTG Serial (Hardwired)

Best For: Direct serial connections, legacy equipment, RS232/RS485 devices

Setup:

  • USB adapter: FTDI, Prolific, or SiLab chipset
  • Protocol: Modbus RTU, Modbus ASCII
  • Physical cable from Android to device (5m max)
  • Perfect for: Field service, equipment commissioning, portable diagnostics

MQTT Publishing:

Data Flow: Serial Device (RS232/485) → USB Adapter → Android → MQTT Broker
Example: Energy meter on RS485 → USB converter → Android → Cloud MQTT → Analytics

Channel 3: Bluetooth (Wireless)

Best For: Wireless connections, portable devices, flexible range monitoring

Setup:

  • Bluetooth serial adapter (tested: SIIG, Broadcom)
  • Protocol: Modbus RTU, Modbus ASCII (wireless)
  • Range: 10–30 meters (line of sight)
  • Perfect for: Warehouse scanning, mobile equipment monitoring, IoT sensors

MQTT Publishing:

Data Flow: Bluetooth Device → Android (wireless) → MQTT Broker → Mobile App
Example: Bluetooth sensor in storage → Android warehouse device → AWS IoT → Alerts

Multi-Channel Configuration Example

Scenario: Monitor everything simultaneously

You can create multiple monitor points, each using a different channel:

Monitor Point Channel Source MQTT Topic
Tank Level TCP/IP Factory PLC (192.168.1.100:502) factory/tank_level
Motor Speed Serial (USB) VFD via RS485 converter factory/motor_speed
Ambient Temp Bluetooth Wireless sensor in room warehouse/temp_ambient

Automatic Publishing: All three data sources are polled every cycle and published to the MQTT broker in a single batch message:

{
  "timestamp": "2025-11-26T14:30:22Z",
  "device_id": "android-factory-01",
  "points": [
    {"name": "Tank Level", "value": 75.3, "channel": "TCP/IP"},
    {"name": "Motor Speed", "value": 1450, "channel": "Serial"},
    {"name": "Ambient Temp", "value": 22.5, "channel": "Bluetooth"}
  ]
}

Expert Reference: Detailed Configuration

For advanced users and customization. Bookmark this section for quick reference.

Broker Configuration:

Setting Description Example Required
Broker Host MQTT broker hostname or IP mqtt.example.com Yes
Port MQTT port (1883 standard, 8883 TLS) 1883 Yes
Client ID Unique device identifier android-sensor-42 Yes
Username Authentication username field_device_01 If broker requires
Password Authentication password ●●●●●●●● If broker requires

Use Cases & Examples

AWS IoT Core Integration

Configuration:

Broker: xxxxx.iot.us-east-1.amazonaws.com
Port: 8883
TLS: Enabled
Client Cert: device-cert.pem
Topic: devices/android/modbus/data

See full AWS IoT setup guide →

Azure IoT Hub Integration

Configuration:

Broker: your-hub.azure-devices.net
Port: 8883
Username: your-hub.azure-devices.net/device-id/?api-version=2021-04-12
Password: SAS Token
Topic: devices/device-id/messages/events/

See full Azure IoT setup guide →

Local Mosquitto Broker

Configuration:

Broker: 192.168.1.100
Port: 1883
TLS: Disabled
Username: local_user
Password: local_pass
Topic: factory/line1/modbus

Node-RED Dashboard Integration

Configuration:

Broker: localhost (if Node-RED on device) or LAN IP
Port: 1883
Topic: nodered/modbus/input

Node-RED Flow: Subscribe to topic → Parse JSON → Dashboard gauges

Troubleshooting

Common Issues

Problem Cause Solution
Connection Failed Wrong host/port Verify broker details; check firewall
Authentication Error Invalid credentials Confirm username/password; check broker logs
No Data Published MQTT disabled or Client Mode stopped Enable MQTT toggle; start polling
Messages Not Received Wrong topic subscription Check topic structure; verify wildcards (#, +)

Testing MQTT Connection

Using Mosquitto CLI:

# Subscribe to all topics
mosquitto_sub -h broker.example.com -p 1883 -t "modbus/#" -u username -P password

# Test publish
mosquitto_pub -h broker.example.com -p 1883 -t "modbus/test" -m "hello" -u username -P password

Using MQTT Explorer (GUI): 1. Download MQTT Explorer 2. Add connection with your broker details 3. Subscribe to # (all topics) 4. Start app polling and watch for published messages

Frequently Asked Questions

What's the difference between point topics and batch JSON?

Point Topics: Each monitor point publishes to its own topic (e.g., modbus/device01/tank_level). Good for subscribing to specific values.

Batch JSON: All monitor points in a single JSON message to one topic (e.g., modbus/device01/batch). Efficient for dashboards displaying multiple values.

You can enable both modes simultaneously.

How often does MQTT publish?

MQTT publishes automatically after each complete polling cycle through all monitor points. Polling interval is controlled by Settings → Timing → Poll Interval (default 1000ms).

Does MQTT work with Sensor Server mode?

Yes! Sensor values (accelerometer, gyro, etc.) are published just like Modbus monitor points. Topic names use the sensor name.

Can I use MQTT without internet?

Yes, if you have a local MQTT broker (Mosquitto, HiveMQ) on your LAN. The app only needs network access to the broker, not internet.

What happens if the broker goes offline?

Messages are not queued or cached. When the broker reconnects, publishing resumes from the current cycle. For critical data retention, use the Google Sheets Add-on for logging.

How do I secure my MQTT connection?
  1. Use TLS/SSL (port 8883)
  2. Enable client certificate authentication (mutual TLS)
  3. Use strong passwords
  4. Restrict broker access by IP/firewall
  5. Set appropriate QoS levels
Can multiple Android devices publish to the same broker?

Yes. Use unique Client IDs and topic prefixes for each device to avoid collisions. Example: modbus/device01/, modbus/device02/, etc.

Best Practices

Topic Design:

  • Use hierarchical structure: company/site/area/device/point
  • Include device ID for multi-device deployments
  • Keep topic names short and descriptive
  • Use lowercase with underscores: tank_level not Tank Level

Performance:

  • Poll interval ≥ 1000ms for stable networks
  • Use batch JSON for >10 monitor points
  • QoS 0 for high-frequency non-critical data
  • QoS 1 for important values

Security:

  • Always use TLS/SSL for cloud brokers
  • Rotate credentials periodically
  • Use read-only credentials where possible
  • Monitor broker logs for unauthorized access

Reliability:

  • Test connection before deployment
  • Set up broker monitoring/alerts
  • Document topic structure for team
  • Keep backup of configuration

Additional Resources

Need Help? Contact support@quantumbitsolutions.com

Back to Advanced Guide
